Home > Products > Standard Socket > Steel Standard Socket > PS Steel Socket Female Union
PS Steel Socket  Female Union
PS Steel Socket  Female Union
PS Steel Socket  Female Union
PS Steel Socket  Female Union
  • PS Steel Socket  Female Union
  • PS Steel Socket  Female Union
  • PS Steel Socket  Female Union
  • PS Steel Socket  Female Union

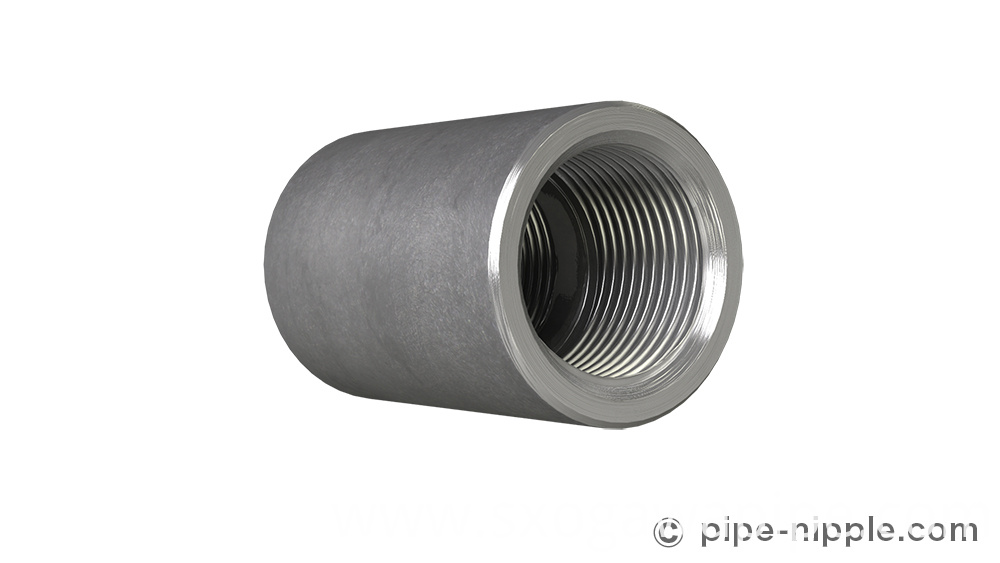

PS Steel Socket Female Union

Download:

Contact Now

Basic Info

Model No.:  PS3/8B-28L

Connection: Female

Certification: Other

Customized: Non-Customized

Application: Oil Pipe

Technics: Other

Material: Carbon Steel

Surface: Other

Thread Distribution: Internal Thread

Head Code: Round

Warranty: 1 Year

Thread Type: PS

Product Description

PS Steel Socket Female Union

  • Material standard
    General structural carbon steel pipe (JIS G3444) or equivalent material is used.
  • Screw standard
    This is an internal thread type pipe fitting (conforming to JIS B0203) that requires a parallel female thread [symbol: PS (Rp)] for taper male thread or a taper female thread [symbol: PT (Rc)]. Suitable for joining pipe nipples, other pipe material parts, fluid equipment, etc. with pipe male thread (PT) for pipes whose main purpose is tightness.
  • About inspection of screw
    All thread inspections are performed using a taper thread gauge specified in the standard number (JIS B0253) defined by the Japanese Industrial Standards (JIS standard). In addition, our inspection gauge manufacturer uses OSG (OSG).
  • Join method
    When tightening, after tightening by hand, it is necessary to tighten with torque using a tool such as a pipe wrench. However, in order to tightly bond, even if it is tightened tightly, there is a slight space between the top and bottom of the mountain in practical use, and perfect airtightness cannot be secured. Therefore, it is necessary to take measures such as wrapping seal tape (tape-like gap filling material) around the screw before assembly or applying the same liquid sealant. (It is necessary to select the type of sealing material suitable for the piping application.) Also, when assembling in a place where attention is paid to leakage, seal tape (about 2 to 3 turns) is wrapped around the external thread. Apply sealant from the top, and apply sealant on the female thread side to secure tightness.
  • Inspection pressure
    Leakage(pneumatic) 0.5Mpa(5.1kgf/cm2)
    Pressure resistance(water pressure) 2.5Mpa(25.5kgf/cm2)
  • Type, symbol, chemical composition
    Type Symbol Chemical composition(%)
    C Si Mn P S Ni Cr Mo
    Carbon steel pipe for general structure STK 0.25 or less - - 0.040 or less 0.040 or less - - -

Specification

PS Steel Socket Female Union

PS Steel Socket Female Union Price

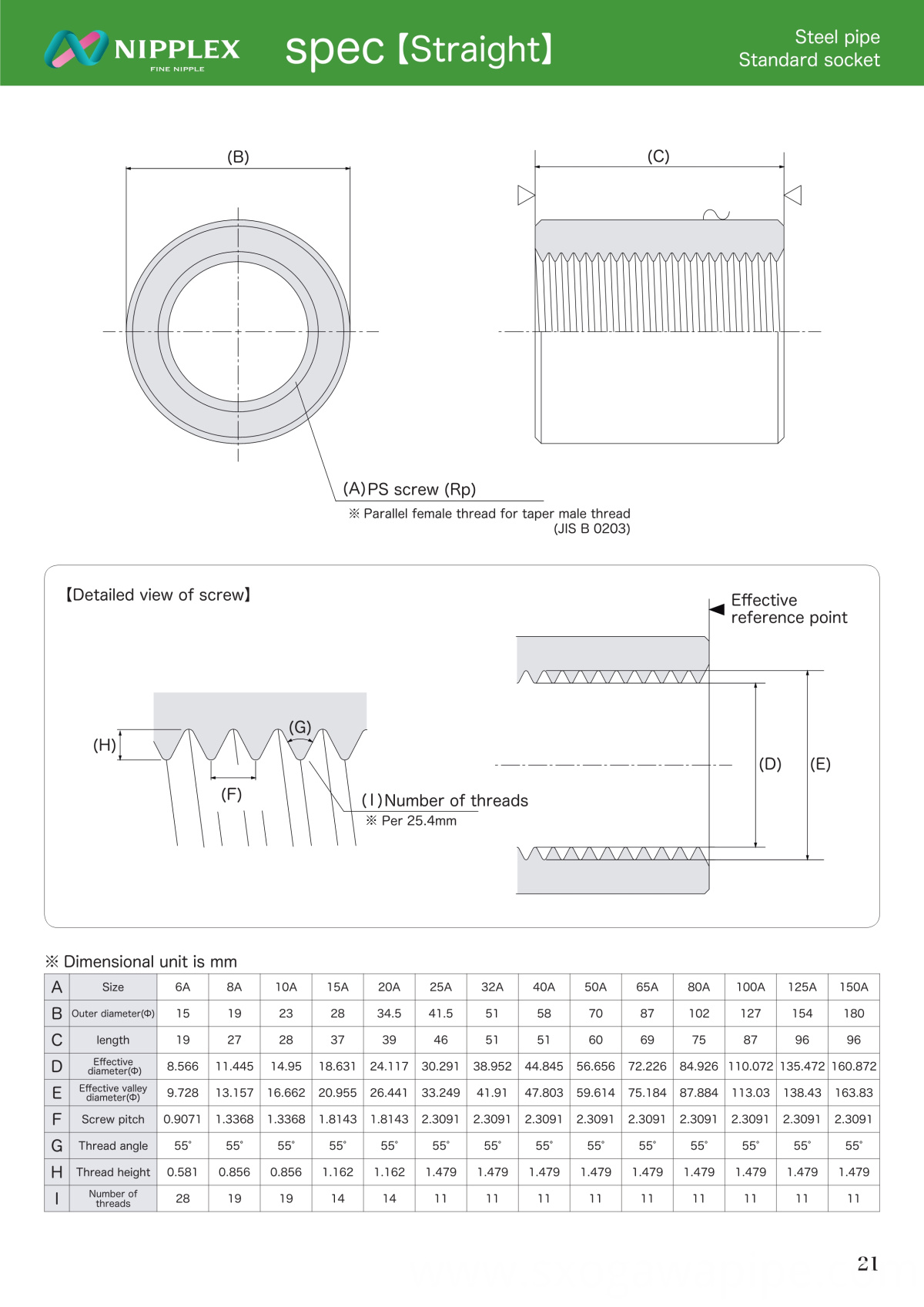

 PS Steel Socket Spec





Looking for ideal Straight Thread Socket Pipe Joints Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Internal ThreadFemale Screw Thread are quality guaranteed. We are China Origin Factory of Internal Screw Thread FemaleThread. If you have any question, please feel free to contact us.

Product Categories : Standard Socket > Steel Standard Socket
